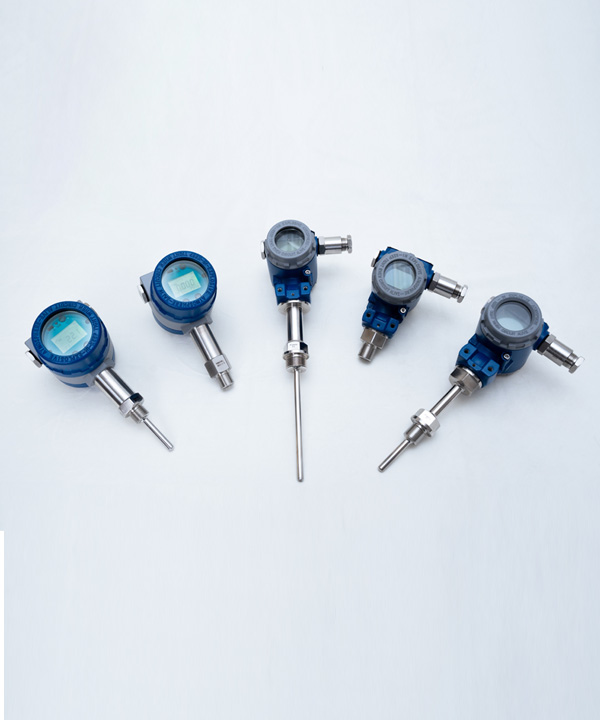

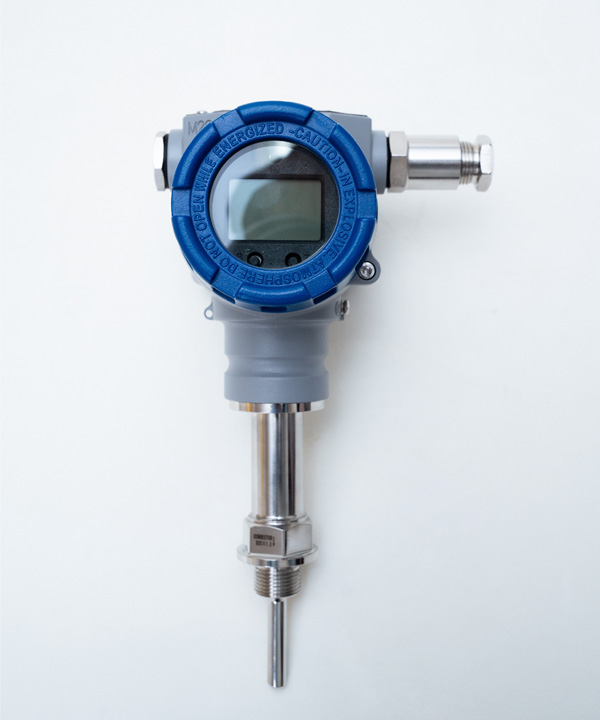

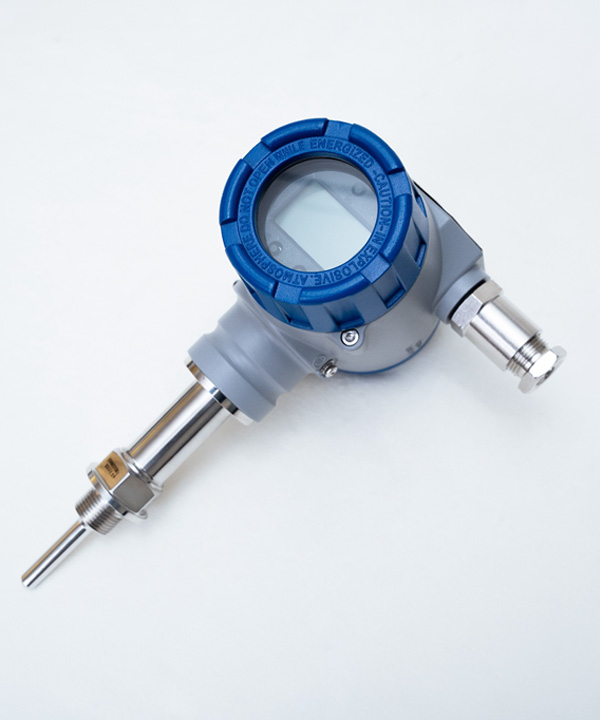

Industrial Intelligent Temperature Transmitter WZPK-10S
Temperature measurement of gases, liquids, and fluid media in industries such as Chemical, Petroleum, Oil Refining, Thermal Power
Measuring Range：-70 to 300°C
Power Supply：12.5-36VDC
Output Signal：4-20mA, 4-20mA + HART protocol, RS485 RTU
Temperature Range：
Protection Rating：IP66
Download Materials： Click To Download

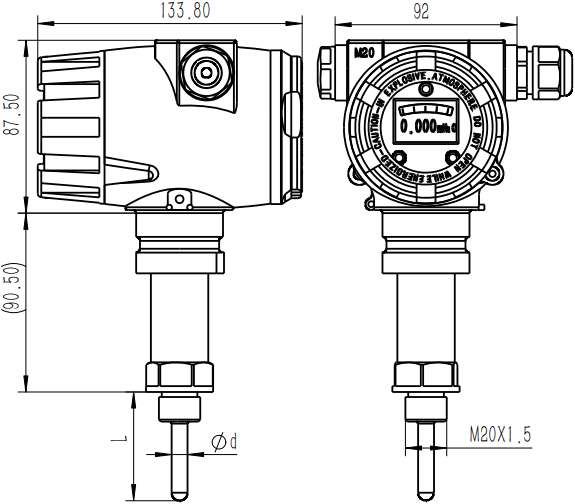

Outline Dimension Diagram:

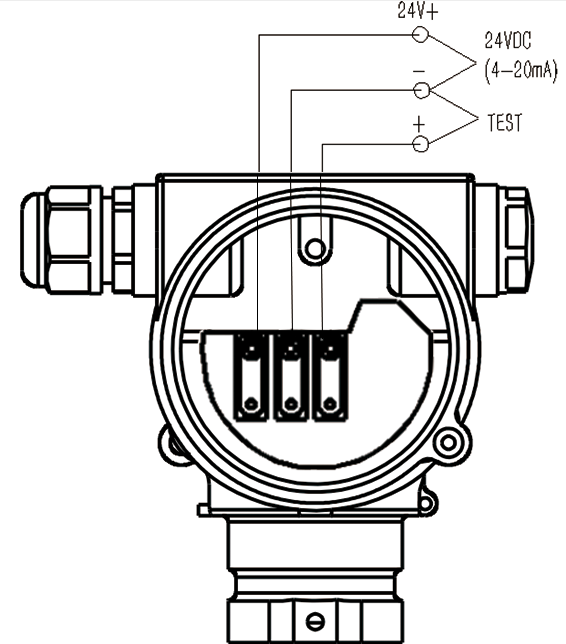

Electrical Connection Diagram:
Product Introduction: Suitable for: Temperature measurement of gases, liquids, and fluid media in industries such as Chemical, Petroleum, Oil Refining, Thermal Power, Coking, Steel, Metallurgy, Fertilizer, Sewage Treatment, Paper Making, Steam Turbine, Heating Boiler, Water Supply Pipeline Network, Textile, etc. Features: Easy installation, analog output signal, modular design, 180° rotatable LCD head, 1-year warranty provided, 5-digit LCD display head. Performance Parameters: Measuring Range: -70 to 300°C Power Supply: 12.5-36VDC Output Signal: 4-20mA, 4-20mA + HART protocol, RS485 RTU Process Connection: M20X1.5 external thread, G1/2 external thread. Other process connections available upon request, customer must provide standard and drawings. Accuracy Class: Class A ±0.15°C, Class B ±0.3°C Protection Rating: IP66 Explosion Proof Rating: Exia IICT4 and Exia IICT6 Electrical Connection: M20X1.5 internal thread Probe Material: 316L Stainless Steel Housing Material: Low-copper aluminum casting Paint Color:Blue-Grey two-tone high-adhesion polyester paint, durable, non-cracking, non-fading |
