Industrial Instruments

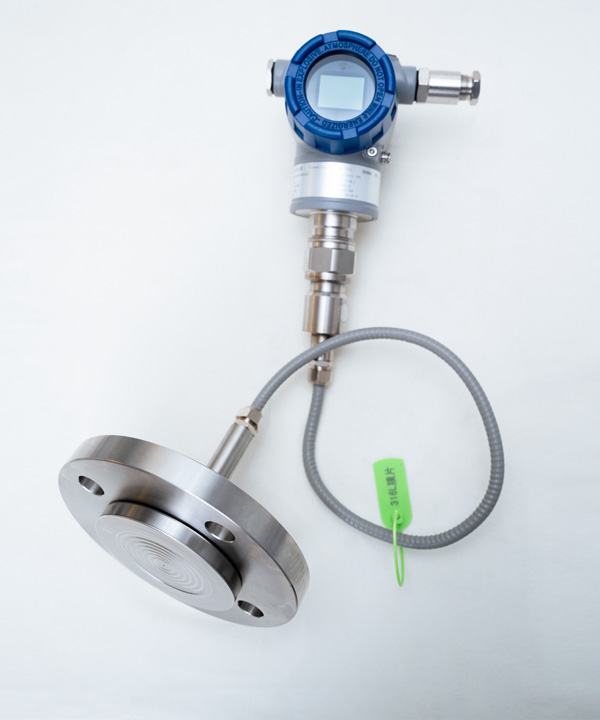

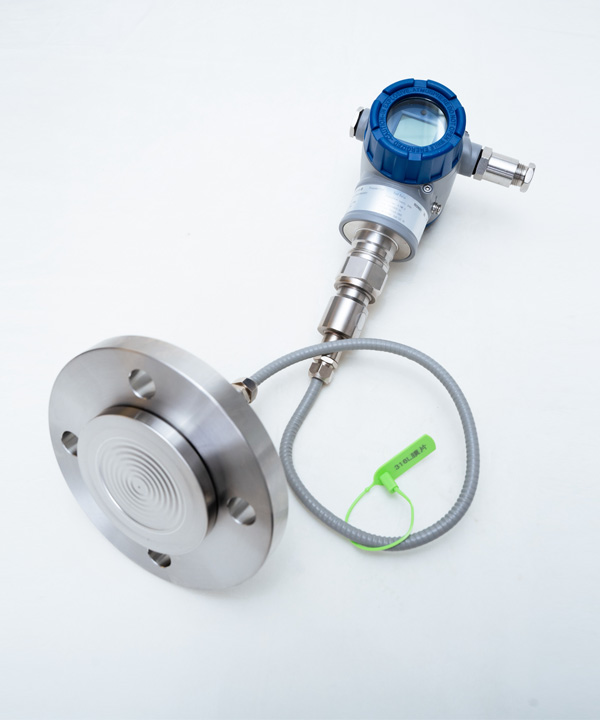

Chemical Seal Flat Diaphragm Single Remote Seal Pressure Transmitter DPI10DL

Measuring Range：0 - 2MPa


Power Supply：12.5-36VDC


Output Signal：0.25%F.S、0.5%F.S


Temperature Range：-20-85°C


Protection Rating：IP66


Download Materials：　　Click To Download


Product Inquiry：+86-917-3551227

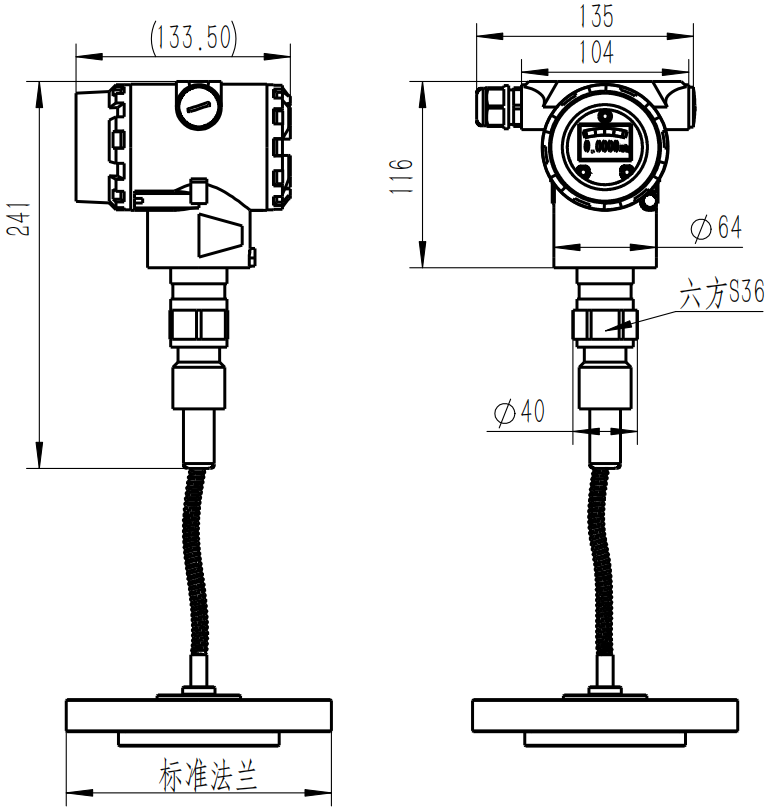

Outline Dimension Diagram：

Outline Dimensions：

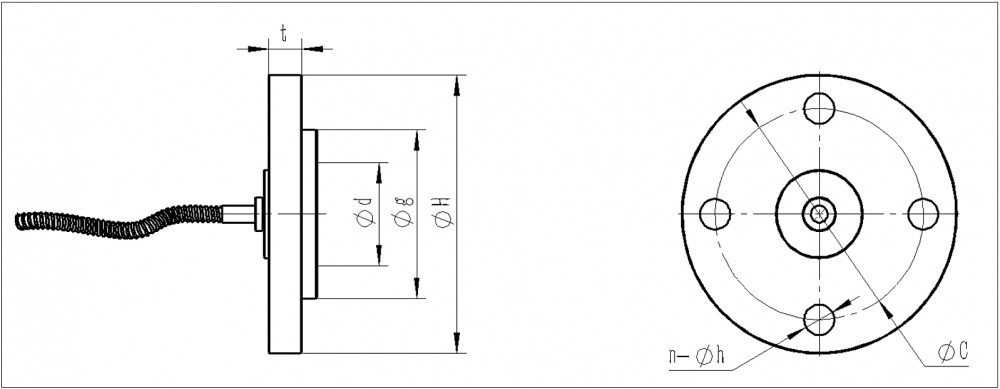

Flange Dimensions：



Flange Size：2-inch(50mm,DN50)

Flange Standard

ΦD

ΦC

Φg

Φd

t

f*

n

Φh

ANSI 150

152.4(6.00)

120.7(4.75)

100(3.94)

61(2.40)

19.1(0.75)

1.6(0.06)

4

19.1(0.75)

ANSI 300

165.1(6.50)

127(5.00)

100(3.94)

61(2.40)

22.4(0.88)

1.6(0.06)

8

19.1(0.75)

DIN PN 10/16

165(6.50)

125(4.92)

100(3.94)

61(2.40)

18(0.71)

0

4

18(0.71)

DIN PN 25/40

165(6.50)

125(4.92)

100(3.94)

61(2.40)

20(0.78)

0

4

18(0.71)

GB PN 10/16

165(6.50)

125(4.92)

100(3.94)

61(2.40)

20(0.78)

3(0.12)

4

18(0.71)

GB PN 25/40

165(6.50)

125(4.92)

100(3.94)

61(2.40)

20(0.78)

3(0.12)

4

18(0.71)

Flange Size：3-inch(80mm,DN80)

Flange Standard

ΦD

ΦC

Φg

Φd

t

f*

n

Φh

ANSI 150

190.5(7.50)

152.4(6.00)

130(5.12)

90(3.54)

23.9(0.94)

1.6(0.06)

4

19.1(0.75)

ANSI 300

209(8.25)

168.1(6.62)

130(5.12)

90(3.54)

28.5(1.12)

1.6(0.06)

8

22.4(0.88)

DIN PN 10/16

200(7.87)

160(6.30)

130(5.12)

90(3.54)

20(0.79)

0

8

18(0.71)

DIN PN 25/40

200(7.87)

160(6.30)

130(5.12)

90(3.54)

24(0.94)

0

8

18(0.71)

GB PN 10/16

200(7.88)

160(6.30)

130(5.12)

90(3.54)

20(0.78)

3(0.12)

8

18(0.71)

GB PN 25/40

200(7.88)

160(6.30)

130(5.12)

90(3.54)

20(0.94)

3(0.12)

8

18(0.71)

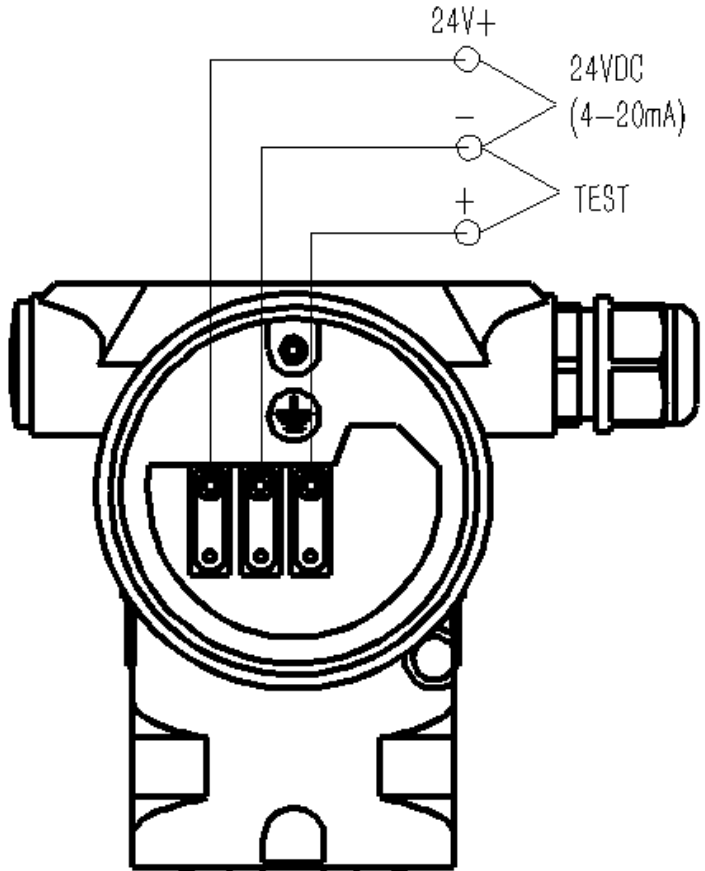

Electrical Connection Diagram:



Product Introduction:

Suitable for: level and pressure measurement of liquids, gases, crystallizing, and viscous media in industries such as: Chemical, Petroleum, Oil Refining, Thermal Power, Coking, Steel, Metallurgy, Fertilizer, Wastewater Treatment, etc.

Features:Analog output signal, modular design, 1-year warranty provided, 180°rotatable LCD head, 5-digit LCD display head; High pressure resistance, high temperature resistance.

Performance Parameters:

Measuring Range:0 - 2 MPa

Supply Voltage Range:12.5 - 36 VDC

Output Signal:4-20mA / 4-20mA+HART

Process Connection: Standard flange, customer must provide flange standard and dimensions.

Full Scale Accuracy: 0.25% F.S, 0.5% F.S

Ambient Temperature: -20 to 85°C

Protection Rating:IP66

Explosion-proof Rating: Exia IICT4 and Exia IICT6

Electrical Connection: M20X1.5 internal thread

Over pressure Limit:Static pressure resistance 13 MPa

Housing Material: Low-copper aluminum casting

Filling Fluid: Silicone Oil

Paint Color: Blue-Grey two-tone high-adhesion polyester paint, durable, non-cracking, non-fading

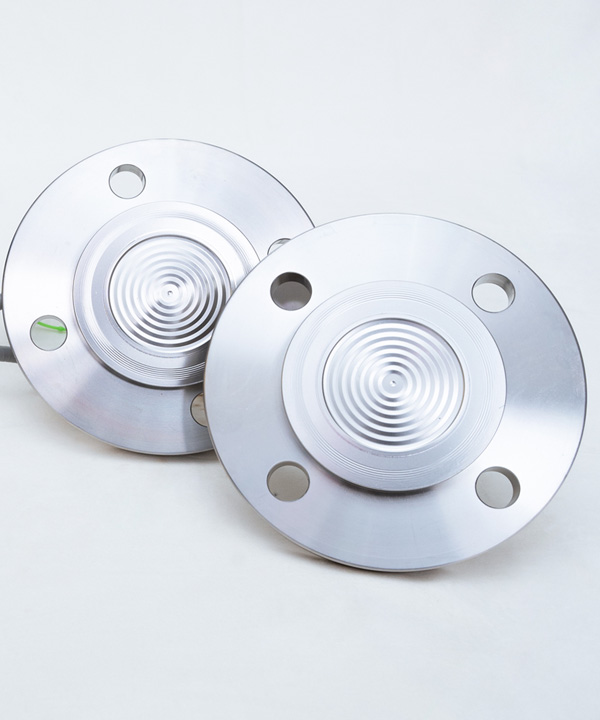

Diaphragm Material:316L Stainless Steel, Hastelloy C-276, Monel, Tantalum

Outline Dimension Diagram：

Outline Dimensions：



Flange Dimensions：



Flange Size：2-inch(50mm,DN50)

Flange Standard

ΦD

ΦC

Φg

Φd

t

f*

n

Φh

ANSI 150

152.4(6.00)

120.7(4.75)

100(3.94)

61(2.40)

19.1(0.75)

1.6(0.06)

4

19.1(0.75)

ANSI 300

165.1(6.50)

127(5.00)

100(3.94)

61(2.40)

22.4(0.88)

1.6(0.06)

8

19.1(0.75)

DIN PN 10/16

165(6.50)

125(4.92)

100(3.94)

61(2.40)

18(0.71)

0

4

18(0.71)

DIN PN 25/40

165(6.50)

125(4.92)

100(3.94)

61(2.40)

20(0.78)

0

4

18(0.71)

GB PN 10/16

165(6.50)

125(4.92)

100(3.94)

61(2.40)

20(0.78)

3(0.12)

4

18(0.71)

GB PN 25/40

165(6.50)

125(4.92)

100(3.94)

61(2.40)

20(0.78)

3(0.12)

4

18(0.71)

Flange Size：3-inch(80mm,DN80)

Flange Standard

ΦD

ΦC

Φg

Φd

t

f*

n

Φh

ANSI 150

190.5(7.50)

152.4(6.00)

130(5.12)

90(3.54)

23.9(0.94)

1.6(0.06)

4

19.1(0.75)

ANSI 300

209(8.25)

168.1(6.62)

130(5.12)

90(3.54)

28.5(1.12)

1.6(0.06)

8

22.4(0.88)

DIN PN 10/16

200(7.87)

160(6.30)

130(5.12)

90(3.54)

20(0.79)

0

8

18(0.71)

DIN PN 25/40

200(7.87)

160(6.30)

130(5.12)

90(3.54)

24(0.94)

0

8

18(0.71)

GB PN 10/16

200(7.88)

160(6.30)

130(5.12)

90(3.54)

20(0.78)

3(0.12)

8

18(0.71)

GB PN 25/40

200(7.88)

160(6.30)

130(5.12)

90(3.54)

20(0.94)

3(0.12)

8

18(0.71)

Electrical Connection Diagram:



Product Introduction:

Suitable for: level and pressure measurement of liquids, gases, crystallizing, and viscous media in industries such as: Chemical, Petroleum, Oil Refining, Thermal Power, Coking, Steel, Metallurgy, Fertilizer, Wastewater Treatment, etc.

Features:Analog output signal, modular design, 1-year warranty provided, 180°rotatable LCD head, 5-digit LCD display head; High pressure resistance, high temperature resistance.

Performance Parameters:

Measuring Range:0 - 2 MPa

Supply Voltage Range:12.5 - 36 VDC

Output Signal:4-20mA / 4-20mA+HART

Process Connection: Standard flange, customer must provide flange standard and dimensions.

Full Scale Accuracy: 0.25% F.S, 0.5% F.S

Ambient Temperature: -20 to 85°C

Protection Rating:IP66

Explosion-proof Rating: Exia IICT4 and Exia IICT6

Electrical Connection: M20X1.5 internal thread

Over pressure Limit:Static pressure resistance 13 MPa

Housing Material: Low-copper aluminum casting

Filling Fluid: Silicone Oil

Paint Color: Blue-Grey two-tone high-adhesion polyester paint, durable, non-cracking, non-fading

Diaphragm Material:316L Stainless Steel, Hastelloy C-276, Monel, Tantalum
