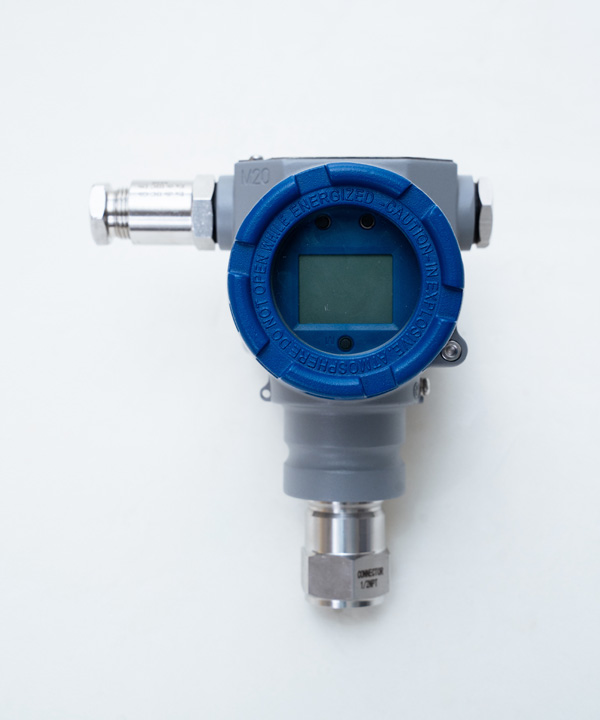

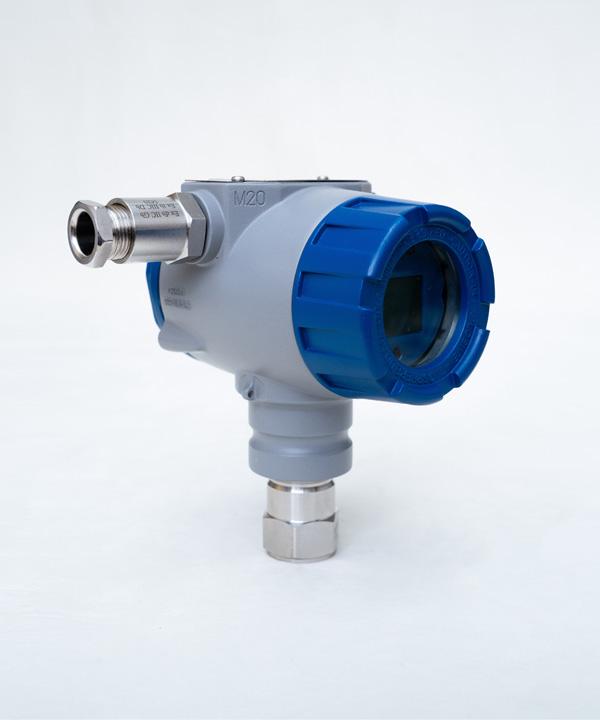

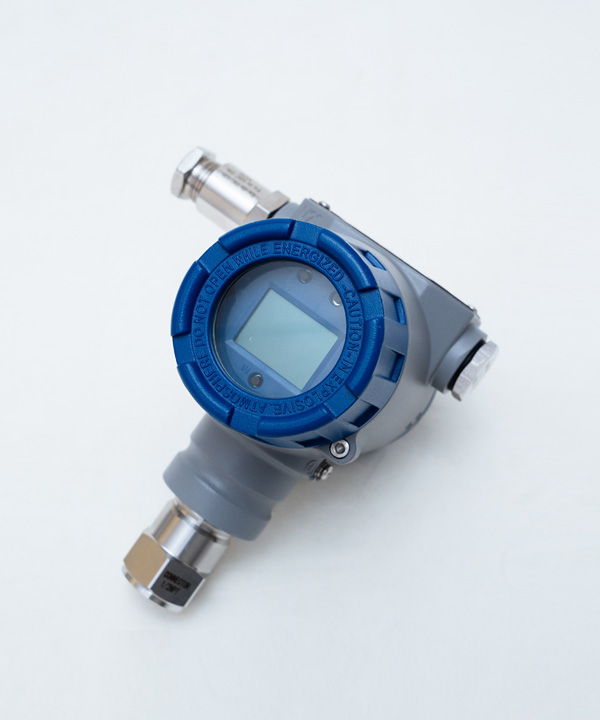

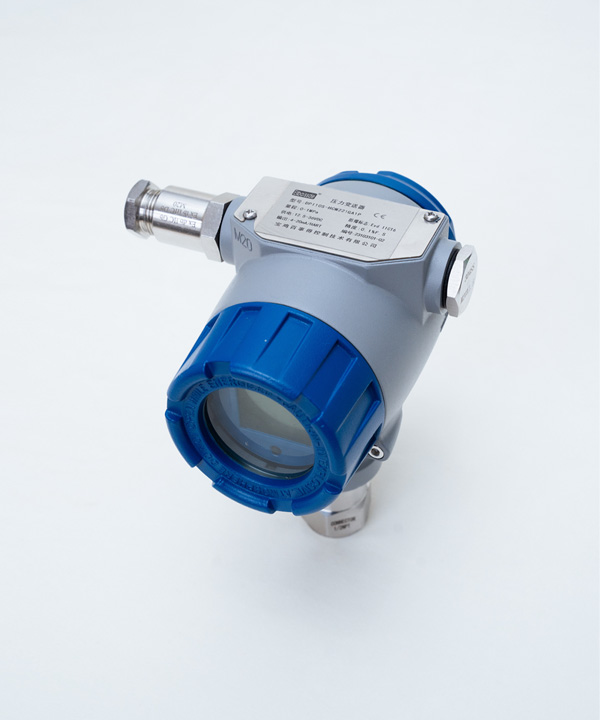

Intelligent Pressure Transmitter DPI10S
Pressure measurement of gases, liquids, and fluid media inindustries such as Chemical, Petroleum, Oil Refining, Thermal Power, Coking,Steel, Metallurgy, Fertilizer, Sewage Treatment, Paper Making, Steam Turbine,Heating Boiler, Water Supply Pipeline Network, Textile, etc.
Measuring Range： -100 - 0 KPa / 0 - 100 MPa
Power Supply：12.5-36VDC
Output Signal：4-20mA / 4-20mA+HART / RS485 RTU
Temperature Range：-20 - 85°C
Protection Rating：IP66
Download Materials： Click To Download
Scan
Browse the product on your mobile phone

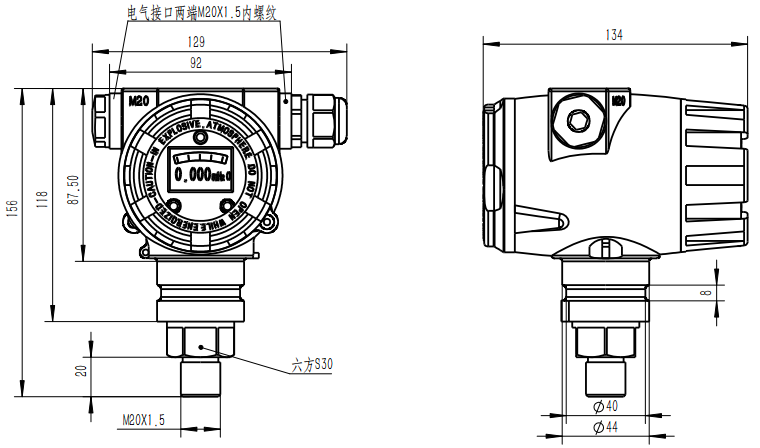

Outline Dimension Diagram:

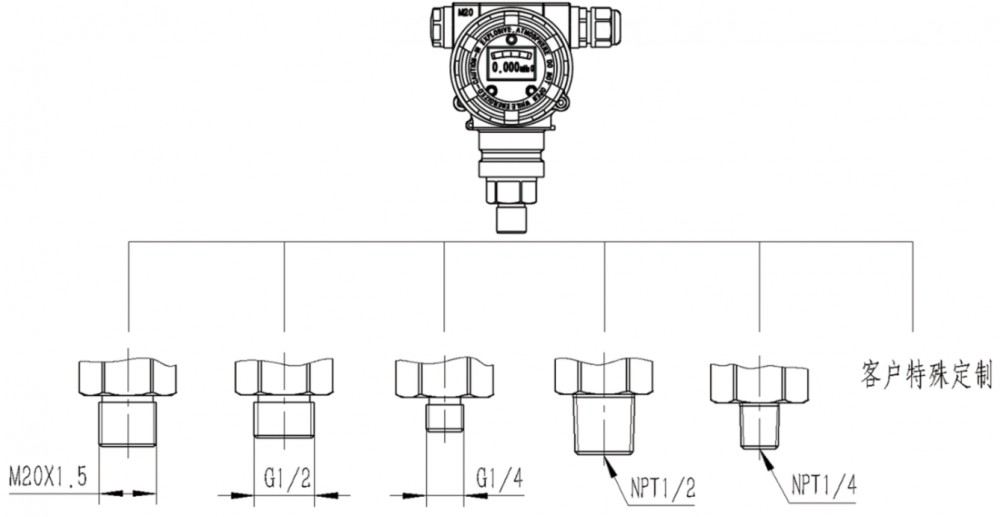

Process Connection Thread：

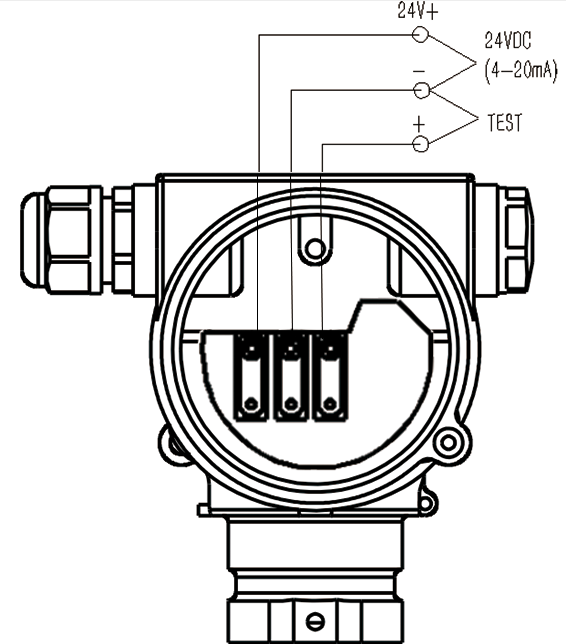

Electrical Connection Diagram:
Product Introduction: Suitable for:Pressure measurement of gases, liquids, and fluid media inindustries such as Chemical, Petroleum, Oil Refining, Thermal Power, Coking,Steel, Metallurgy, Fertilizer, Sewage Treatment, Paper Making, Steam Turbine,Heating Boiler, Water Supply Pipeline Network, Textile, etc. Features:Easy installation, analog output signal, modular design, 180°rotatable LCD head, 1-year warranty provided, 5-digit LCD display head. Performance Parameters: Measuring Range:-100 - 0 KPa / 0 - 100 MPa Power Supply:12.5-36VDC Output Signal:4-20mA / 4-20mA + HART protocol / RS485 RTU Process Connection:M20X1.5 external thread, G1/2 external thread,NPT1/2 external thread, NPT1/2 internal thread. Other process connections available upon request, customer must provide standard and drawings. Full Scale Accuracy:Typical Values: 0.075% F.S, 0.1% F.S, 0.25% F.S, 0.5% F.S Temperature Range:-20 - 85°C Protection Rating:IP66 Explosion Proof Rating:Exia IICT4 and Exia IICT6 Electrical Connection:M20X1.5 internal thread Over pressure Limit:1.5 times full scale Burst Pressure:3 times full scale Housing Material:Low-copper aluminum casting Filling Fluid:Silicone Oil Paint Color:Blue-Grey two-tone high-adhesion polyester paint, durable, non-cracking, non-fading Diaphragm Material:316L stainless steel, Hastelloy C-276, Monel, Tantalum |
