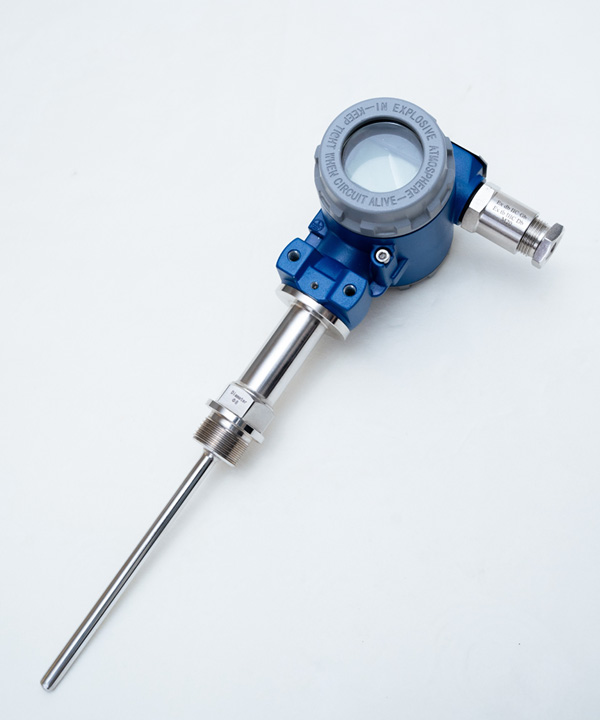

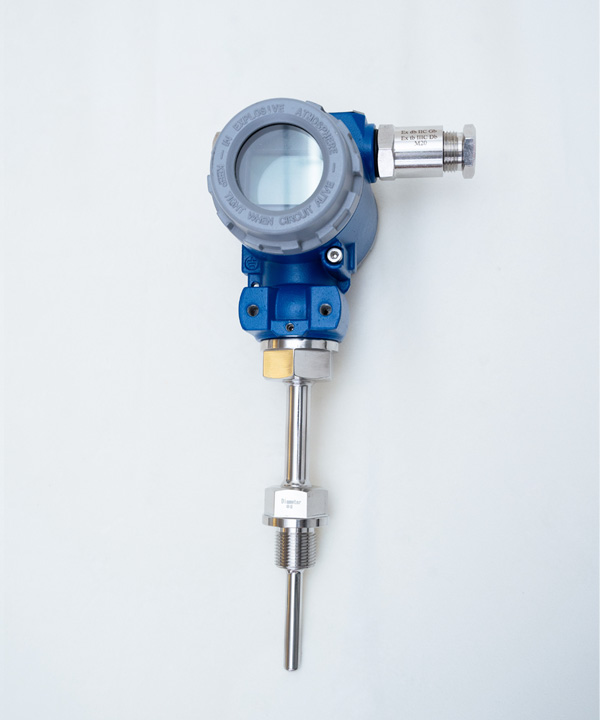

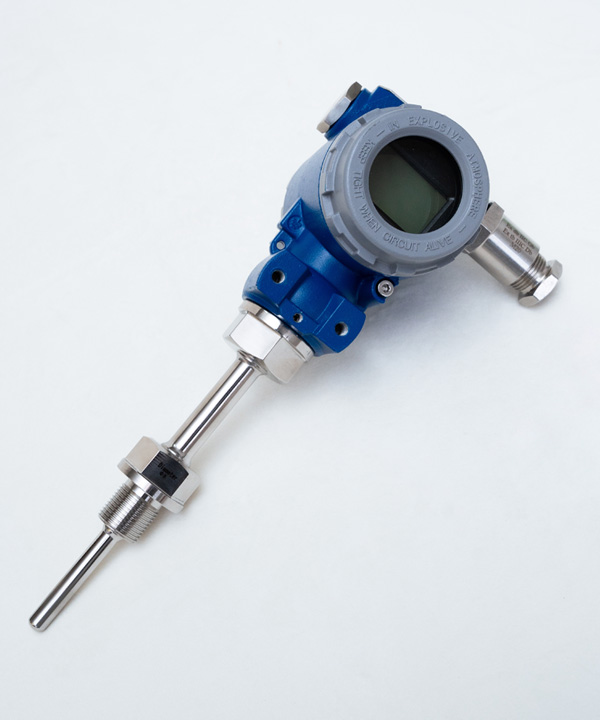

Industrial Economical Temperature Transmitter WZPK-706J
Temperature measurement of gases, liquids, and fluid media in industries such as Heat Exchange Station, Constant Pressure Water Supply,
Measuring Range： -70 to 300°C
Power Supply：12.5-36VDC
Output Signal： 4-20mA
Temperature Range：
Protection Rating：IP66
Download Materials： Click To Download

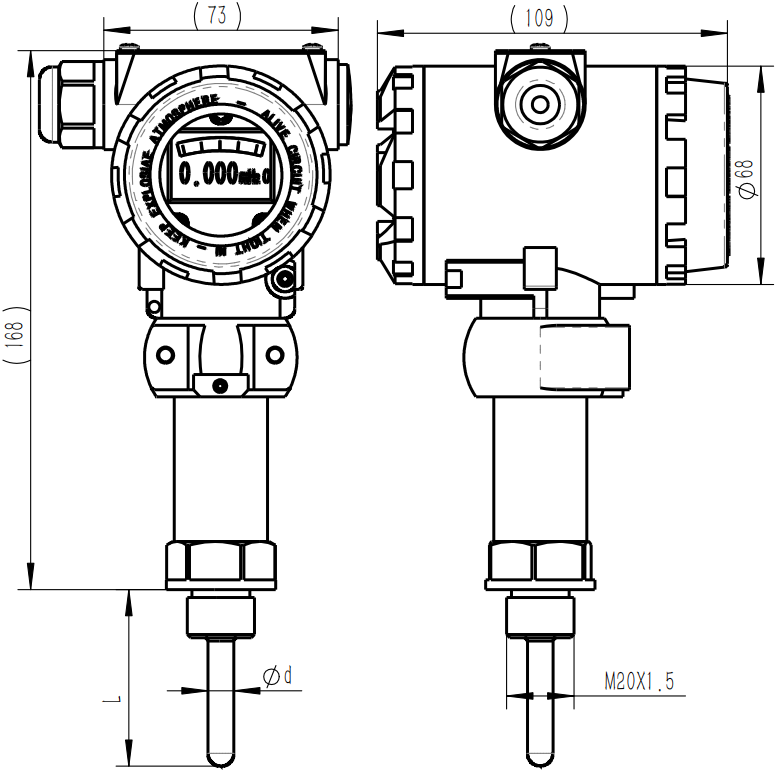

Outline Dimension Diagram:

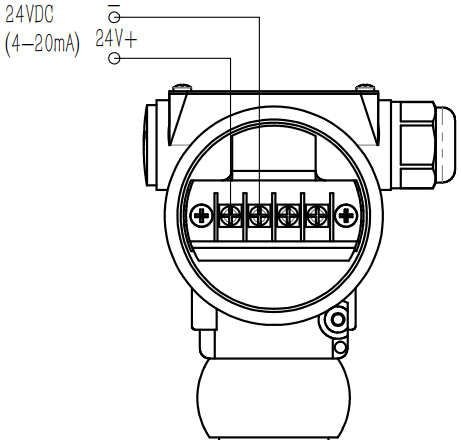

Electrical Connection Diagram:
Product Introduction: Suitable for: Temperature measurement of gases, liquids, and fluid media in industries such as Heat Exchange Station, Constant Pressure Water Supply, Vacuum Equipment, Natural Gas Installation, Gas Boiler, Central Air Conditioning Unit, etc. Features: Compact size, easy installation, analog output signal, low-cost economical type, high sensitivity, fast temperature response, modular design, 1-year warranty provided. Performance Parameters: Measuring Range: -70 to 300°C Power Supply: 12.5-36VDC Output Signal: 4-20mA Process Connection: M20X1.5 external thread, G1/2 external thread. Other process connections available upon request, customer must provide standard and drawings. Accuracy Class: Class A ±0.15°C, Class B ±0.3°C Protection Rating: IP66 Explosion Proof Rating: Exia IICT4 and Exia IICT6 Electrical Connection: M20X1.5 internal thread Probe Material: 316L Stainless Steel Housing Material: Low-copper aluminum casting Paint Color: Blue-Grey two-tone high-adhesion polyester paint, durable, non-cracking, non-fading |
