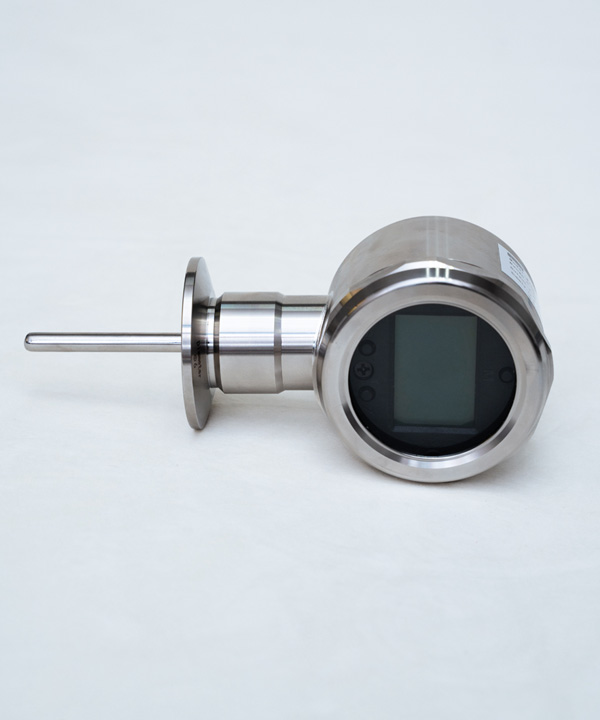

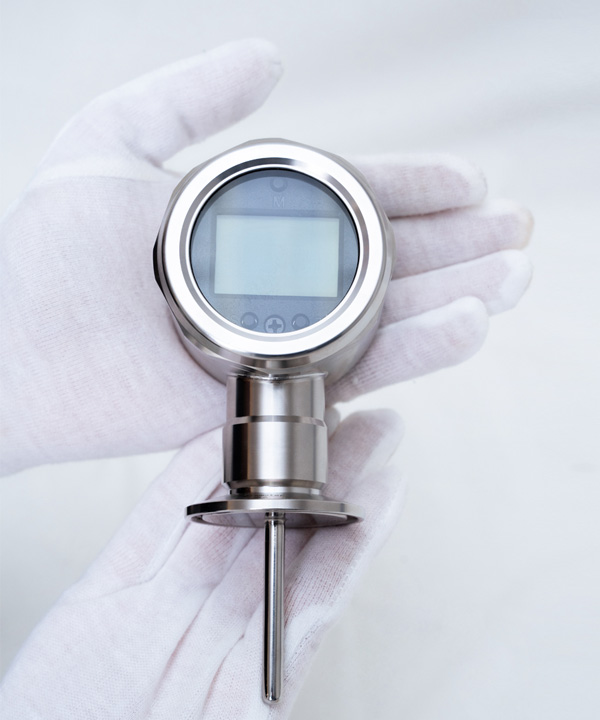

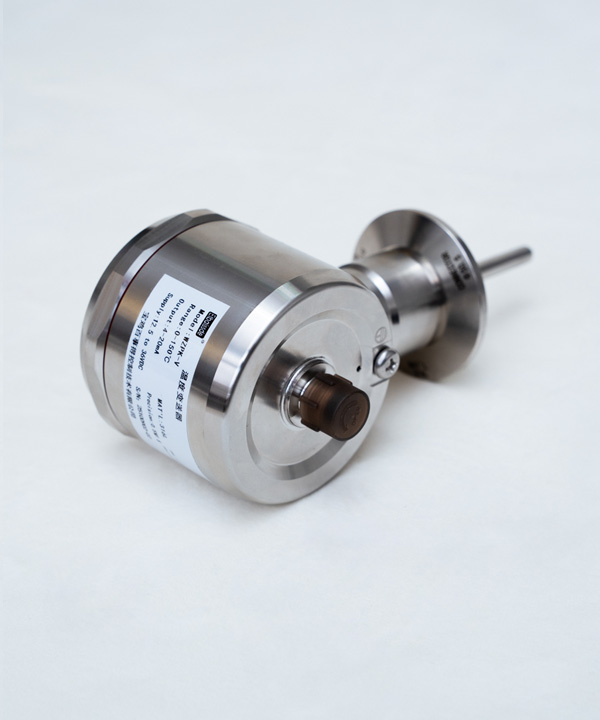

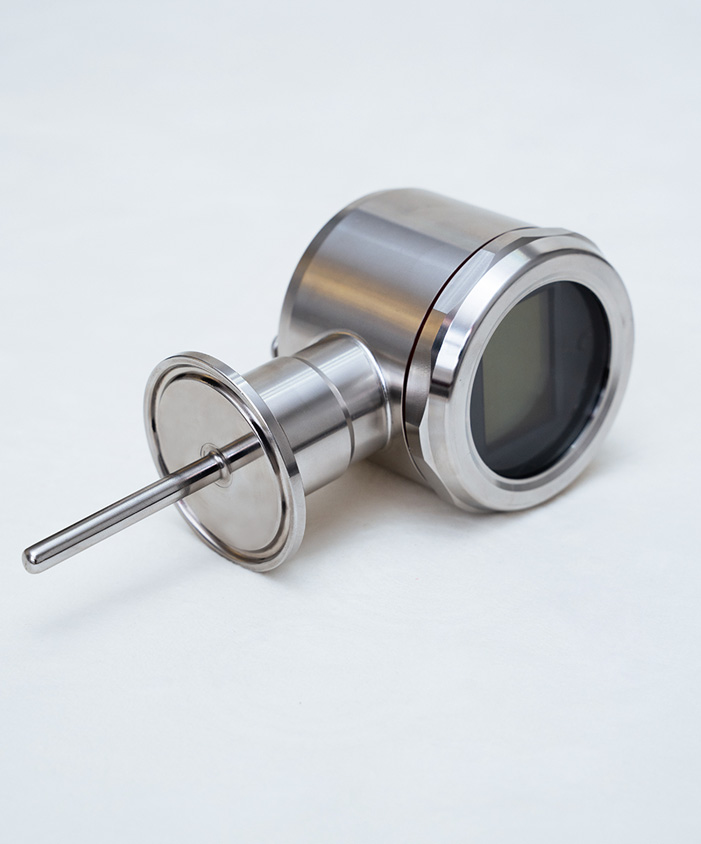

Intelligent Display Sanitary Temperature Transmitter WZPK-V
Online temperature measurement in production processes for juice, jam, beer, alcohol, milk, medical water, etc.
Measuring Range：-70 to 300°C
Power Supply：12.5-36VDC
Output Signal： 4-20mA, 4-20mA + HART protocol
Temperature Range：
Protection Rating： IP67
Download Materials： Click To Download

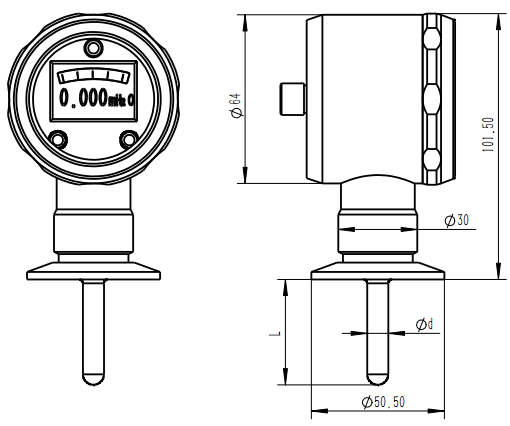

Outline Dimension Diagram:

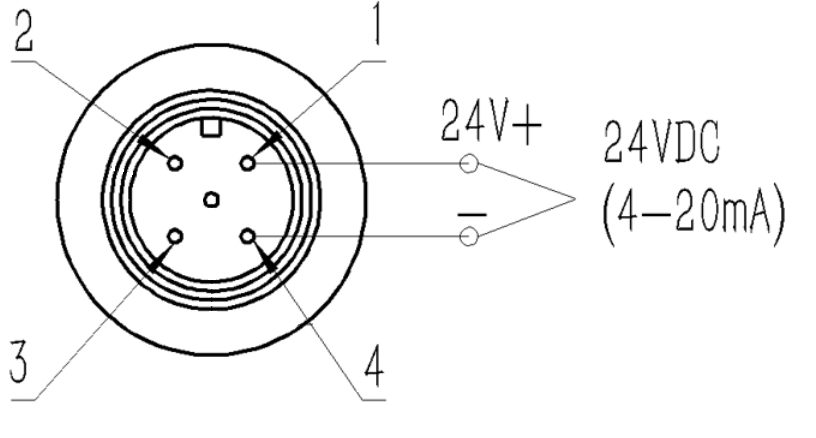

Electrical Connection Diagram:
Product Introduction: Suitable for: Online temperature measurement in production processes for juice, jam, beer, alcohol, milk, medical water, etc., within pure water pipelines and equipment for Food, Beverage, Biology, Beer, Liquor, Dairy Products, Medical Water Treatment, Pharmaceutical Equipment. Features: High accuracy, good stability, no moving parts, shock resistant, vibration resistant, reverse polarity protection, easy installation, good sealing, proprietary leak-free technology. Performance Parameters: Measuring Range: -70 to 300°C Power Supply: 12.5-36VDC Output Signal: 4-20mA, 4-20mA + HART protocol Process Connection: Φ50.5 clamp. Other process connections customizable, customer must provide standard and drawings. Accuracy Class: Class A ±0.15°C, Class B ±0.3°C Protection Rating: IP67 Electrical Connection: M12X1 quick 4-pin connector Material: 304 stainless steel housing, 316L stainless steel probe |
