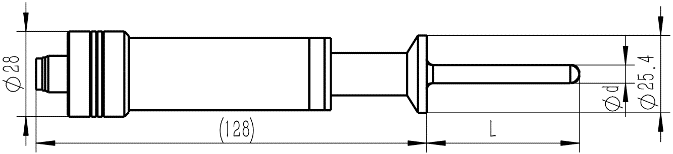

Outline Dimension Diagram:

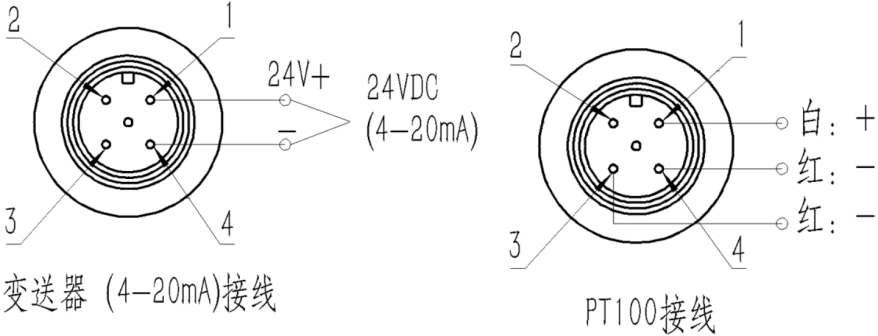

Electrical Connection Diagram:

Product Introduction:

Suitable for: Online temperature measurement in production processes for juice, jam, beer, alcohol, milk, medical water, etc., within pure water pipelines and equipment for Food, Beverage, Biology, Beer, Liquor, Dairy Products, Medical Water Treatment, Pharmaceutical Equipment.

Features: Compact size, high accuracy, good stability, no moving parts, shock resistant, vibration resistant, reverse polarity protection, easy installation, good sealing, proprietary leak-free technology.

Performance Parameters:

Measuring Range: -70 to 300°C

Power Supply: 12.5-36VDC

Output Signal: 4-20mA, Resistance

Process Connection:Φ50.5 clamp. Other process connections customizable, customer must provide standard and drawings.

Accuracy Class: Class A ±0.15°C, Class B ±0.3°C

Protection Rating: IP67

Electrical Connection: M12X1 quick 4-pin connector

Material: 304 stainless steel sleeve, 316L stainless steel probe

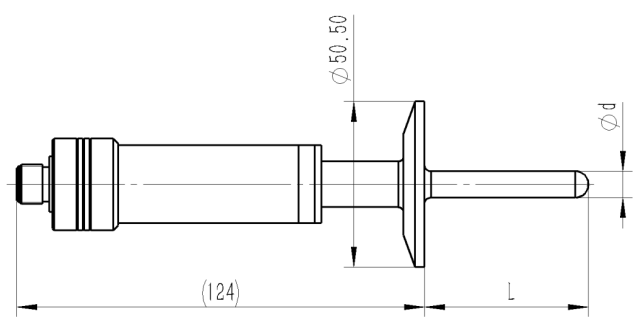

Outline Dimension Diagram:

Electrical Connection Diagram:

Product Introduction:

Suitable for: Online temperature measurement in production processes for juice, jam, beer, alcohol, milk, medical water, etc., within pure water pipelines and equipment for Food, Beverage, Biology, Beer, Liquor, Dairy Products, Medical Water Treatment, Pharmaceutical Equipment.

Features: Compact size, high accuracy, good stability, no moving parts, shock resistant, vibration resistant, reverse polarity protection, easy installation, good sealing, proprietary leak-free technology.

Performance Parameters:

Measuring Range: -70 to 300°C

Power Supply: 12.5-36VDC

Output Signal: 4-20mA, Resistance

Process Connection:Φ50.5 clamp. Other process connections customizable, customer must provide standard and drawings.

Accuracy Class: Class A ±0.15°C, Class B ±0.3°C

Protection Rating: IP67

Electrical Connection: M12X1 quick 4-pin connector

Material: 304 stainless steel sleeve, 316L stainless steel probe
